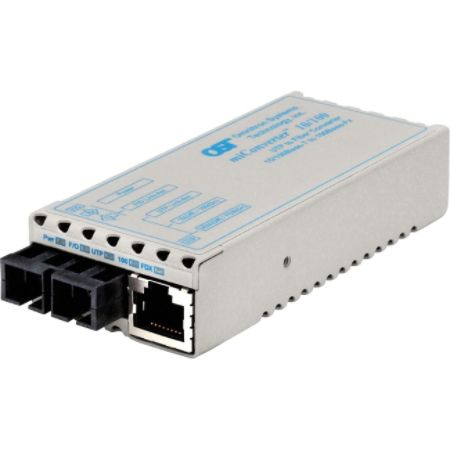

miConverter 10/100 Plus Ethernet Fiber Media Converter RJ45 SC Single-Mode 30km Item # 240898
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
240898
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The miniature miConverter 10/100 Plus is a rate-switching 10/100 UTP copper to 100Base-Fx fiber media converter that provides cost-effective fiber network extension and connectivity. Plug-and-Play capability ensures compatibility with network equipment and simplifies fiber-to-the-desktop deployment.In addition to the features included in the miConverter 10/100, the miConverter 10/100 Plus features DIP-switches for the configuration of the UTP port and Link Modes. The DIP-switches allow manual configuration of the UTP speed and duplex mode, and the selection of Link Modes (fault-detection capabilities). The link modes assist in the identification and isolation of link failures.
Product Details
| Item # | 240898 |
| Manufacturer # | CT7441 |
| Fiber Optic Wavelength | 1310 nm |
| Ethernet Technology | Ethernet; Fast Ethernet |
| Product Series | 10/100 Plus |
| height | 0.8 in |
| Additional Information | Input Voltage:5-15VDC via 2.5mm barrel (0.5A @ 5VDC); 100-120VAC/60Hz (0.03A @ 120VAC) |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | EIA/TIA 568A/B; Compliance: UL; CE; FCC Class A; IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX and 100BASE-FX |
| Fiber Optic Cable Standard | 9/125 µ m |
| Product Line | miConverter |
| width | 1.7 in |
| package contents | miConverter 10/100 Plus SC Single-Mode 30km US AC Powered; US Power Supply - 120Volt / 60Hz; Velcro Strip; User manual |
| depth | 4.1 in |
| Product Name | miConverter 10/100 Plus SC Single-Mode 30km US AC Powered |
| manufacturer | Omnitron Systems |
| Number of SC Ports | 1 |
| Maximum Distance Supported | 18.64 Mile |
| weight | 5 oz |
| brand name | Omnitron Systems |
| USB | No |
| Digital Audio/Video | No |
| SC Port Type | Duplex |
| Digital Audio | No |
| Input Voltage | 120 V AC |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair; Optical Fiber |
| Package Type | Retail |
| Total Number of Ports | 2 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Single-mode |
| form factor | Rack-mountable; Desktop; External; Wall Mountable |
| warranty length | limited lifetime |
| model name | 1123-1-x |
| Network Technology | 10/100Base-TX; 100Base-LX |
